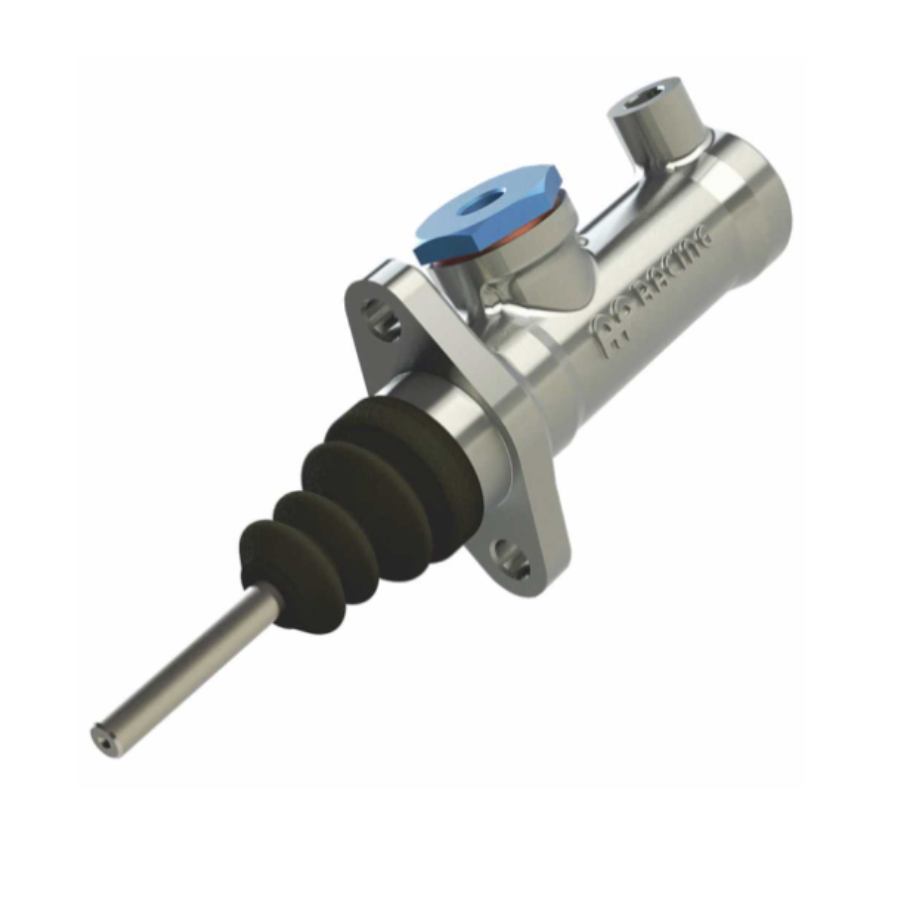

AP Racing Master Cylinder - Push Type - Imperial Threads - Flange Mount
The AP Racing CP9093 is a flange-mounted, push-type master cylinder featuring imperial hydraulic threads. Its centre-valve configuration improves cylinder performance and seal durability, making it suitable for ABS and other high-pressure braking applications.
Manufactured from forged aluminium alloy, the CP9093 combines strength with a lightweight 370g construction. It is suitable for most braking systems and is particularly well suited to clutch applications.
- Centre-valve configuration
- Suitable for ABS and high-pressure applications
- Forged aluminium-alloy body
- Flange-mounted design
- Imperial hydraulic threads
- Short travel to cut-off
- Available in eight bore sizes
- Rubber boot fitted as standard
- Replaces the discontinued CP6093 master-cylinder family
Technical specifications:
| Weight | 0.37kg (0.81lb) |
|---|---|
| Full stroke | 30mm (1.18in) |
| Travel to cut-off | Short: 0.68–1.09mm (0.027–0.043in) |
| Inlet hydraulic thread | 7/16in x 20 UNF |
| Outlet hydraulic thread | 3/8in x 24 UNF |
| Pushrod threads available | PRT: 5/16in UNF PRM: M8 x 1.25 |
| Pushrod length from mounting flange | 163mm (6.41in) |
Technical downloads:
For assistance selecting the correct bore size, pushrod thread or inlet configuration, call our friendly team on (02) 9679 8644.
Usually ships in 7 to 14 days
